Key Highlights
- Nuvoton M032SIAAE (ARM Cortex-M0) microcontroller
- Arduino-compatible pin layout
- Ideal platform for BSP / HAL / driver development
- Robust and protected power architecture
- ARM DAP and J-Link compatible debug support
- Rich extension and expansion connectors

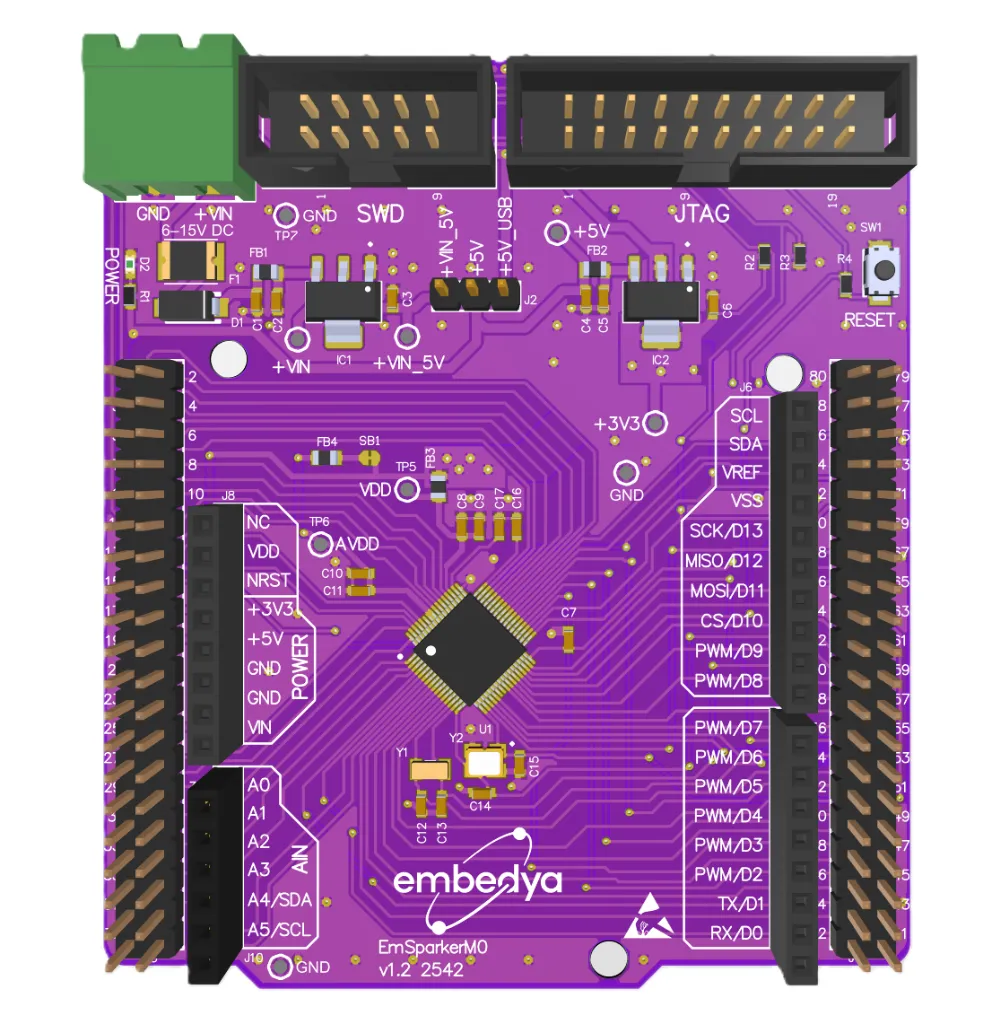

Why EmSparkerM0?
EmSparkerM0 enables rapid development with its Arduino-compatible pin layout, while supporting professional ARM SWD debugging workflows (J-Link / DAPLink).
It is a development board focused on education and early-stage product development, designed to provide a smooth transition from Arduino-style prototyping to professional embedded software and hardware design.
EmSparkerM0 offers a clean and controlled hardware environment for learning BSP architecture, peripheral drivers, and low-level embedded development.
Hardware Specifications
MCU: M032SIAAE
Çekirdek: ARM Cortex-M0
Flash: 512 KB
RAM: 96 KB
Paket: LQFP64
- External VIN input (5-12V)
- Selectable 5V power source via USB or VIN
- On-board 5V LDO regulator
- On-board 3.3V LDO regulator
- Overcurrent protection using resettable polyfuse
- EMI filtering with ferrite beads
- Power status LED
- 5V and 3.3V test points for measurement and debugging
- ARM DAPLink connector
- J-Link compatible SWD interface
- SWDIO, SWCLK, and NRST signal lines
- Direct connection support for external debug probes
- Reset button and dedicated reset circuitry
- Arduino-compatible pin layout
- Direct access to all digital I/O pins
- Analog input pins with ADC support
- Access to alternate functions (AF) for GPIOs
- UART / USART
- SPI
- I²C
- DMA-supported peripherals
- Clock, timer, and event-based hardware infrastructure
- Arduino UNO–form-factor compatible headers
- Multiple extension connectors
- Suitable structure for external modules and training boards
- Easy access to power, GND, and signal pins
